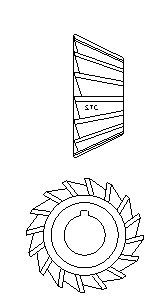

Angle milling cutters
ANSI/ASMEB94.19
| Angle | Cutter Diameter | Cutter Width | Overall Length | Shank Diameter |
| 45° | 1/2" | 5/32" | 2-1/8" | 3/8" |
| 3/4" | 1/4" | 2-1/8" | 3/8" | |
| 1-3/8" | 7/16" | 2-7/8" | 5/8" | |
| 1-7/8" | 5/8" | 3-1/4" | 7/8" | |
| 2-1/4" | 5/8" | 3-3/4" | 1" | |
| 60° | 1/2" | 1/4" | 2-1/8" | 3/8" |
| 3/4" | 5/16" | 2-1/8" | 3/8" | |
| 1-3/8" | 9/16" | 2-7/8" | 5/8" | |
| 1-7/8" | 13/16" | 3-1/4" | 7/8" | |
| 2-1/4" | 1-1/16" | 3-3/4" | 1" |
| DIN842A | DIN842A | |||||||
| Angle | Diameter | Arbor Hole | Width of Face | Angle | Diameter | Arbor Hole | Width of Face | |
| 45° | 40 | 10 | 10 | 55° | 40 | 10 | 13 | |
| 50 | 13 | 13 | 50 | 13 | 16 | |||
| 63 | 16 | 18 | 63 | 16 | 20 | |||
| 80 | 22 | 22 | 80 | 22 | 25 | |||
| 100 | 27 | 28 | 100 | 27 | 32 | |||
| 125 | 32 | 36 | 125 | 32 | 40 | |||
| 160 | 40 | 45 | 160 | 40 | 50 | |||
| 50° | 40 | 10 | 13 | 60° | 40 | 10 | 13 | |
| 50 | 13 | 16 | 50 | 13 | 16 | |||
| 63 | 16 | 20 | 63 | 16 | 20 | |||
| 80 | 22 | 25 | 80 | 22 | 25 | |||
| 100 | 27 | 32 | 100 | 27 | 32 | |||
| 125 | 32 | 40 | 125 | 32 | 40 | |||
| 160 | 40 | 50 | 160 | 40 | 50 | |||
| DIN1823A | DIN1823B | |||||||
| Angle | Diameter | Arbor Hole | Width of Face | Angle | Diameter | Arbor Hole | Width of Face | |
| 60° | 50 | 16 | 12 | 60° | 50 | 16 | 14 | |
| 63 | 22 | 18 | 75° | 16 | ||||
| 65° | 50 | 16 | 12 | 80° | ||||
| 70° | 63 | 22 | 18 | 90° | 18 | |||
| 75° | 50 | 16 | 12 | 60° | 63 | 22 | 14 | |
| 63 | 22 | 18 | 70° | 18 | ||||
| 80° | 63 | 22 | 18 | 75° | ||||
| 80° | 20 | |||||||
| Angle | Diameter | Arbor Hole | Width of Face | Angle | Diameter | Arbor Hole | Width of Face | |
| 45° | 50 | 16 | 8 | 60° | 80 | 27 | 18 | |
| 63 | 22 | 10 | 100 | 32 | 25 | |||
| 80 | 27 | 12 | 90° | 50 | 16 | 14 | ||
| 100 | 32 | 18 | 63 | 22 | 20 | |||
| 60° | 50 | 16 | 10 | 80 | 27 | 22 | ||
| 63 | 22 | 14 | 100 | 32 | 32 |
